Every stroboscope we make is individually calibrated by one of our technicians before final assembly. This means that StroboTek PRO 01 is one of the most accurate portable stroboscopes on the market.
- Frequency accuracy better than 0.01%
- 0.1 Fpm and 0.01 Hz resolution
- ¼° to 4° flash duration
- 1° to 15° phase shift step
StroboTek PRO 01 does not require power supply cords. When measuring fast rotating machinery this represents an important safety feature. Being battery powered also means that you can use it anywhere you need.
- Over 18 hours of use on a single charge (at 1° flash duration)
- Compact and lightweight
- No special charger needed, charges via USB
When creating StroboTek stroboscopes, one of the main goals of our design team was to create an ergonomic and easy-to-use device. This can be seen in the exterior design, in the intuitive user interface, but also in the unique remote control feature.
- Confortable grip allowing single hand operation
- Large OLED display with adjustable contrast
- Android remote control app
- ¼ in. tripod mount screw

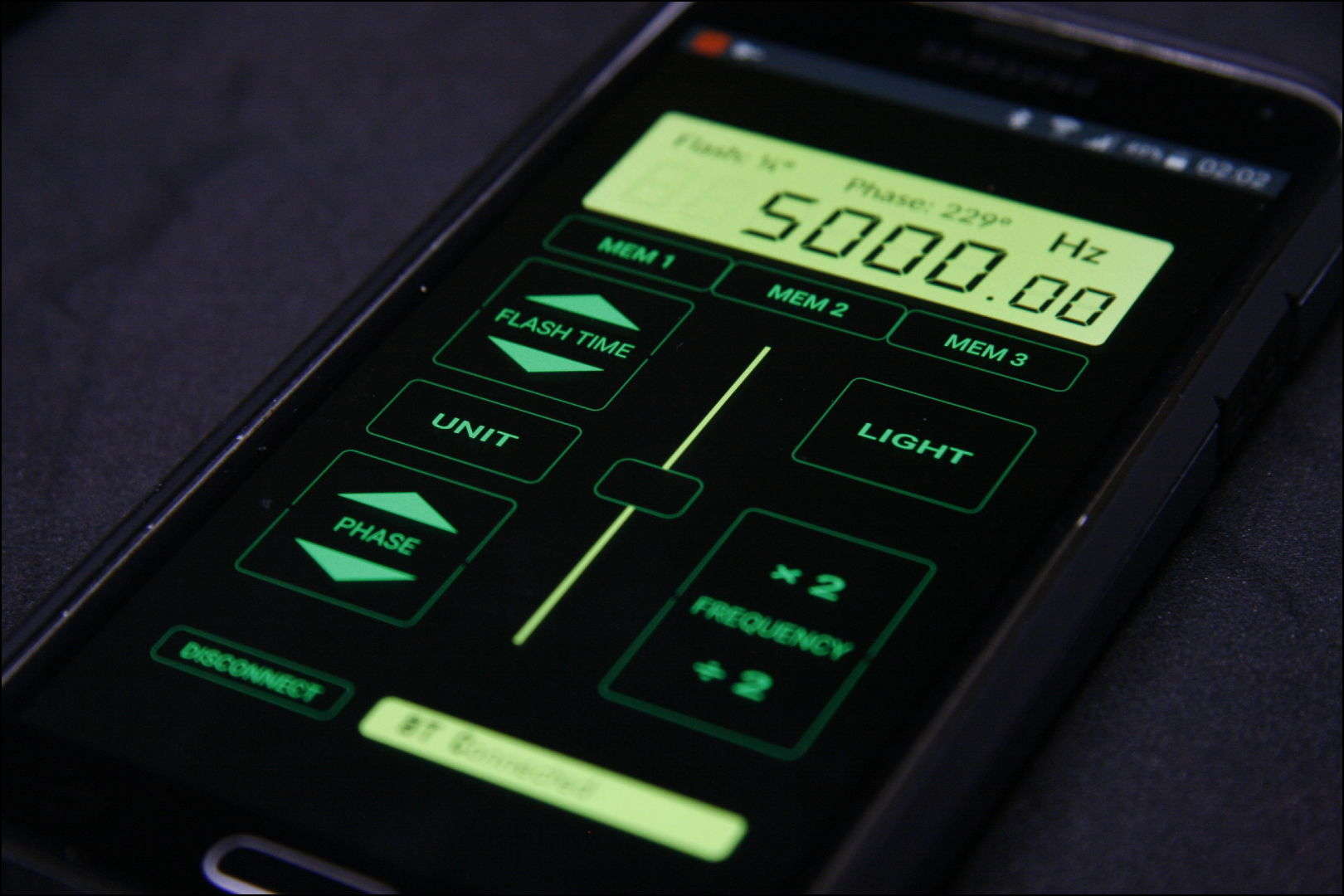

Remote Control Application
Dangers
Stroboscopes are often used near high-speed rotating machinery to diagnose abnormal vibrations, failing bearings and cracked or broken turbine blades. This can be hazardous for the engineers or technicians handling the stroboscope.
Safety
User safety is of foremost importance to us, so we developed a unique wireless remote control function for our stroboscopes. StroboTek stroboscopes can be remote controlled from a safe distance using just an Android smartphone.
Android App
StroboDroid is an Android application created specifically for StroboTek devices, which allows you to control all the important parameters of your stroboscope (frequency, flash duration, phase, etc.) by using a Bluetooth link.

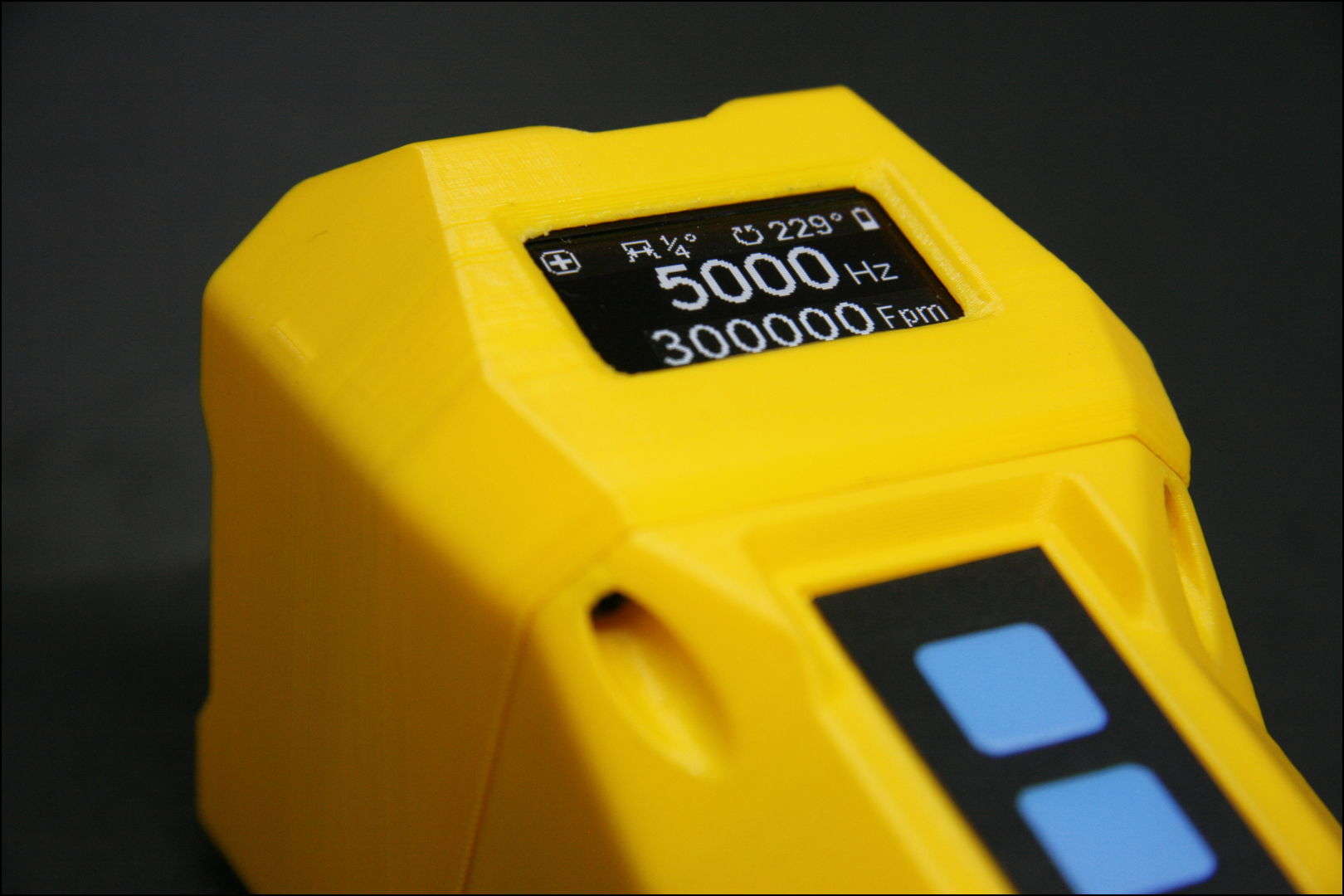

Large OLED Display
wide viewing angle

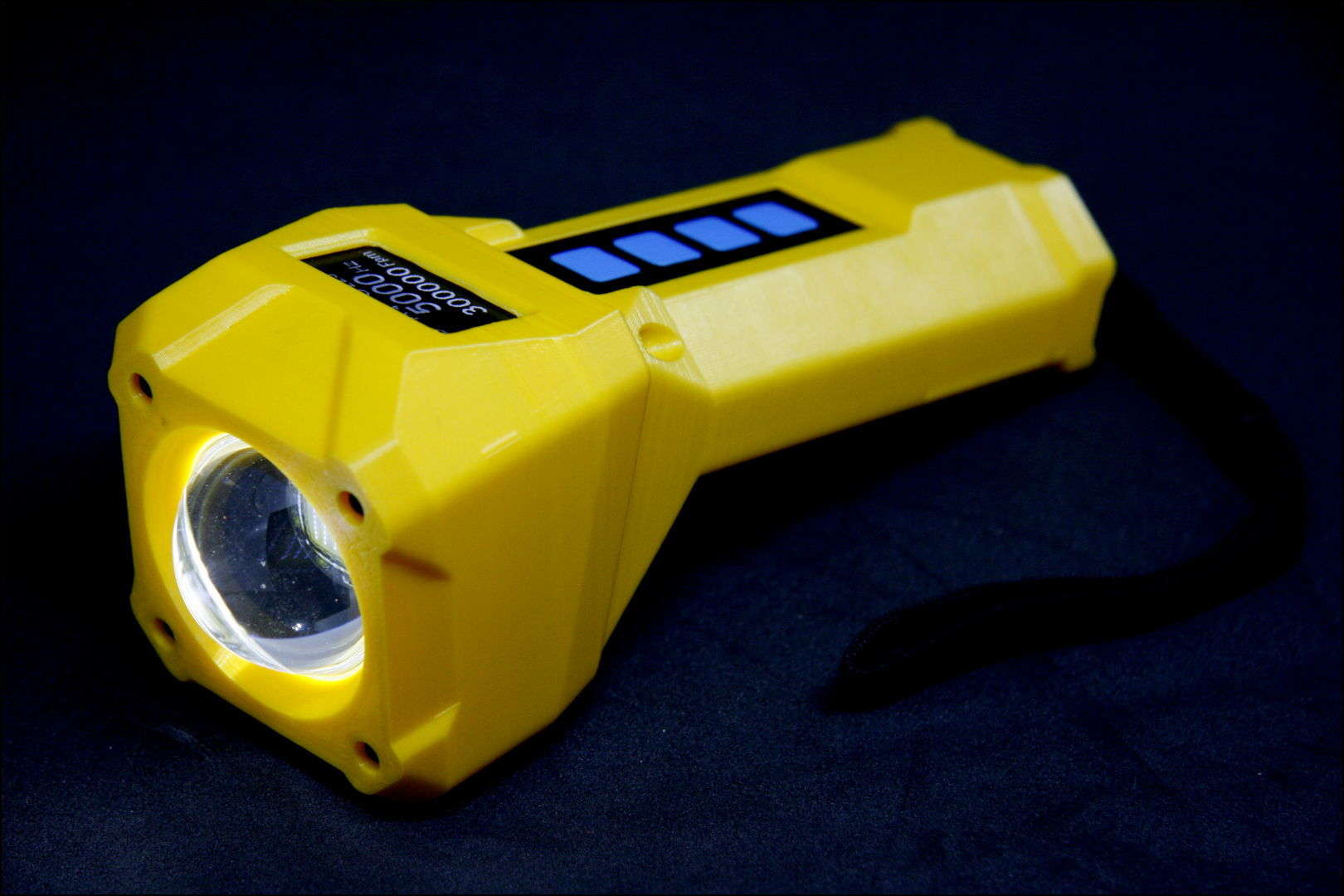

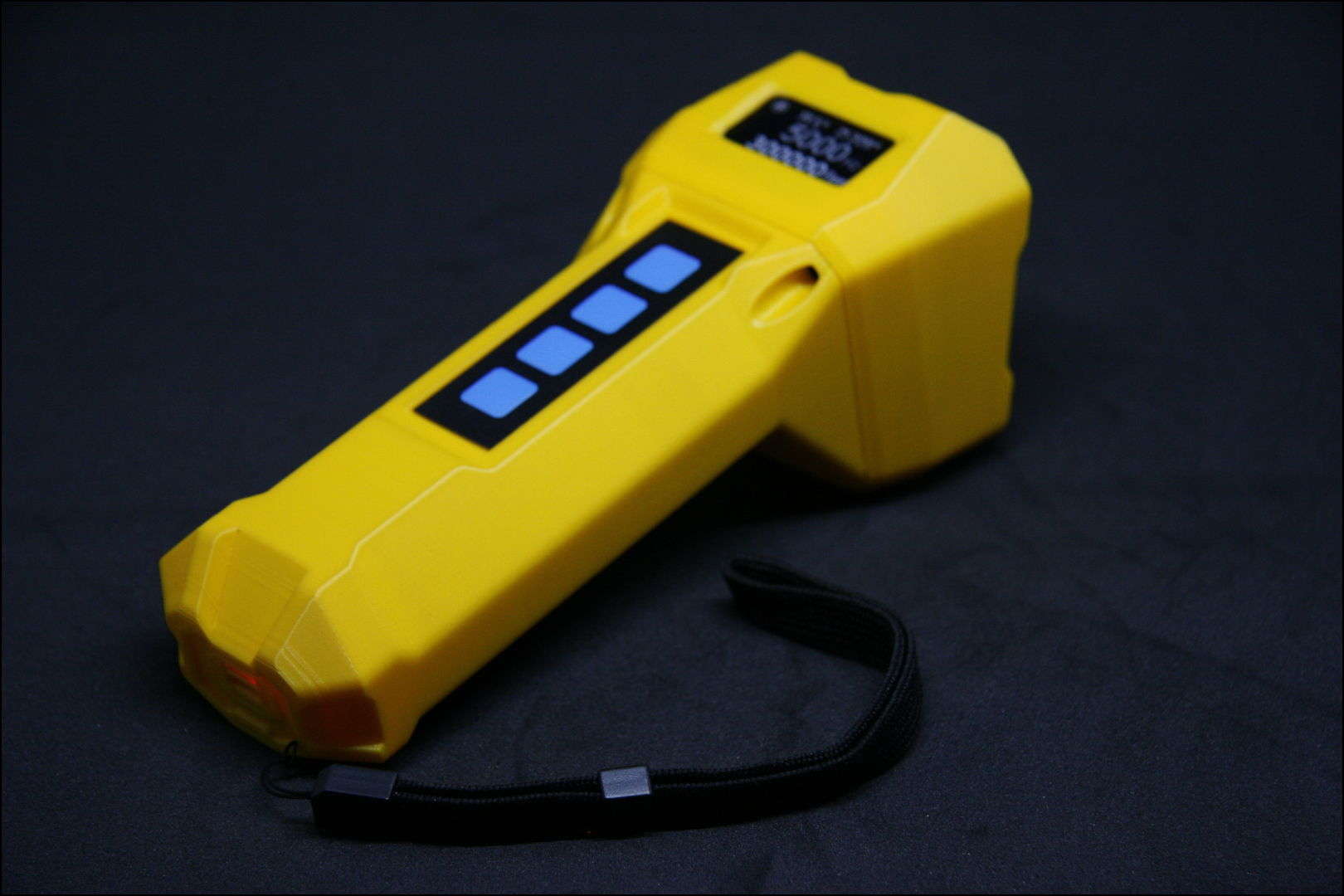

Ergonomic Design
single hand operation

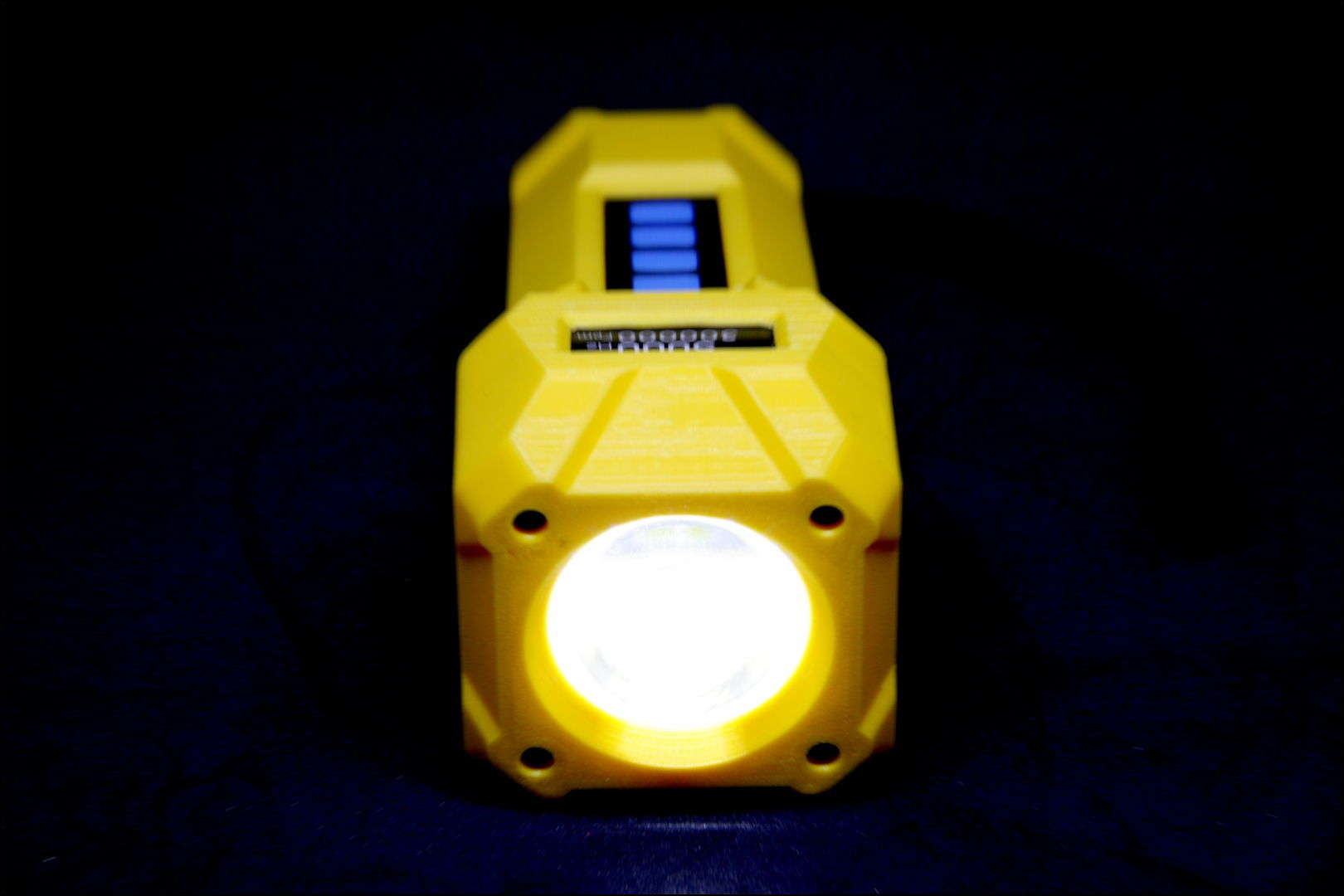

Powerful 50W LED
60° beam angle

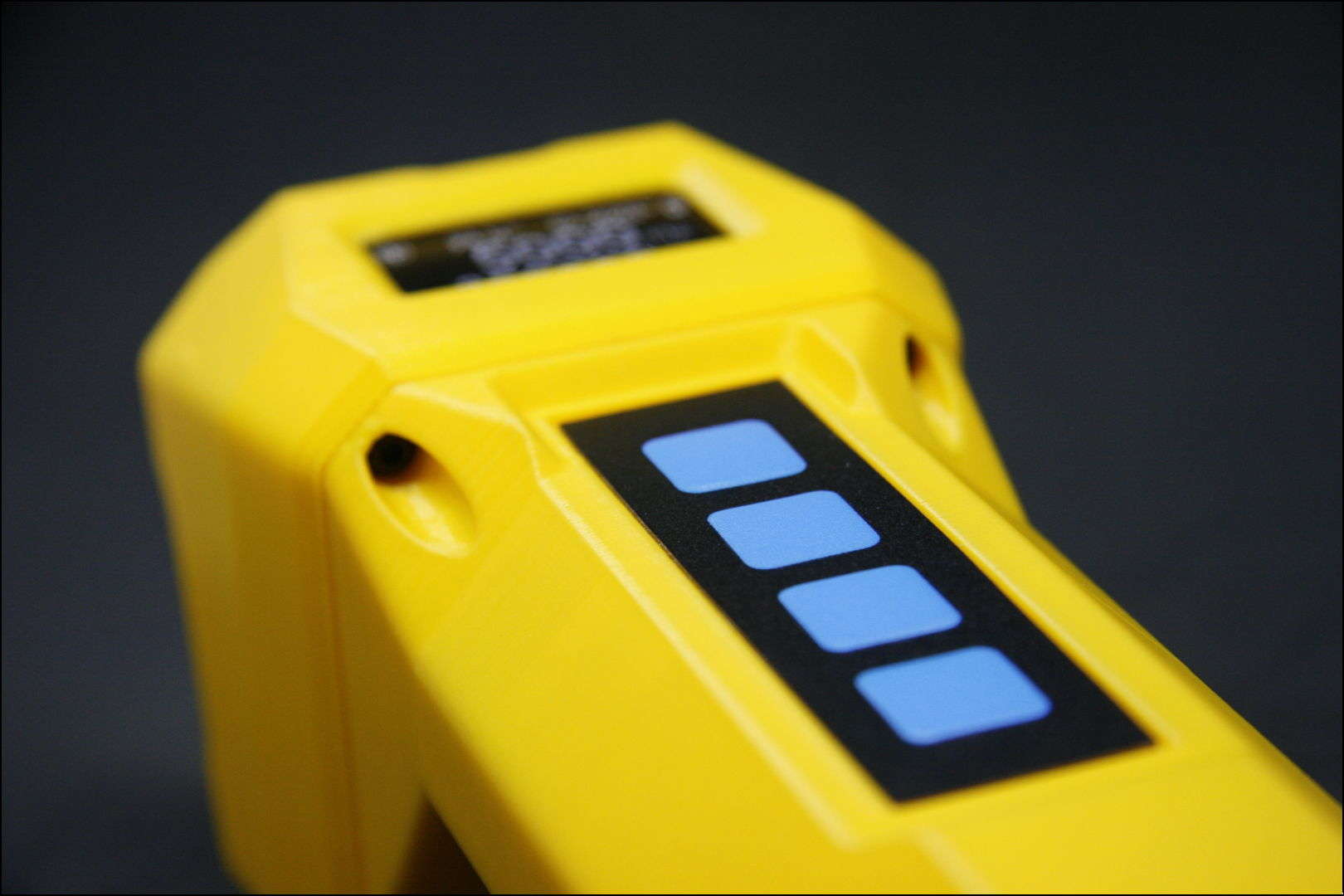

Intuitive Interface
easy-to-use 4-button control
StroboDroid
Android application

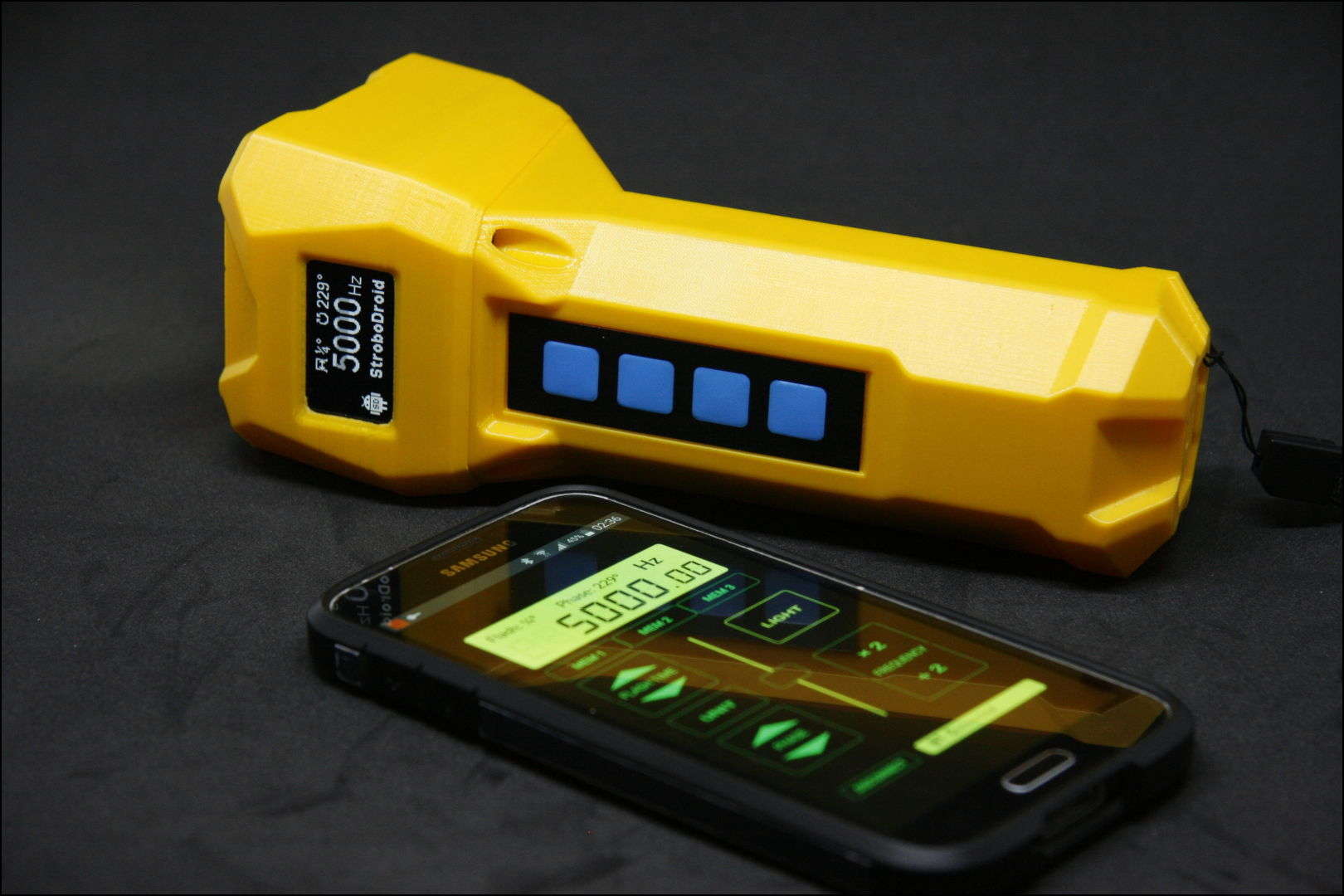

Remote Control
via Bluetooth link

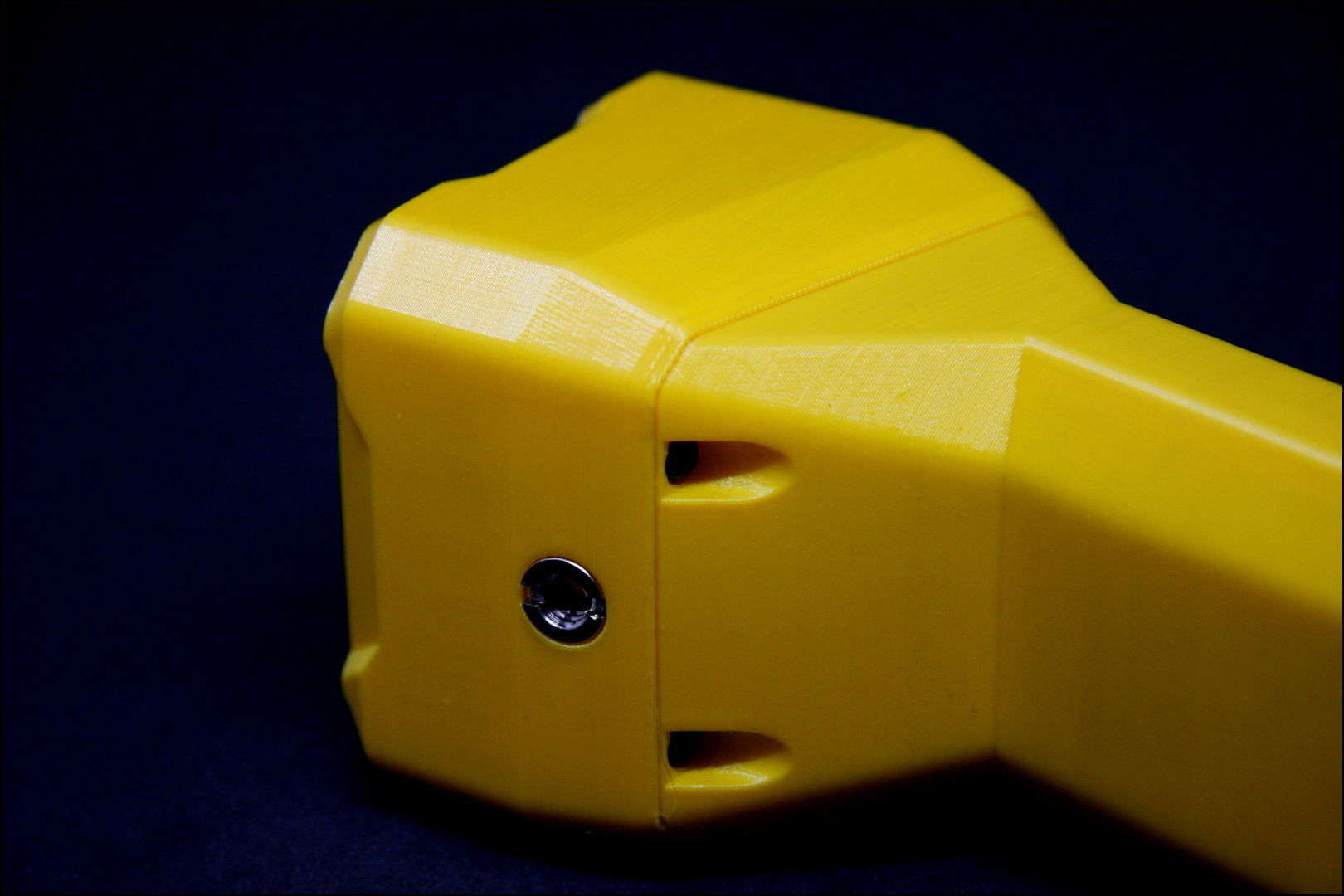

Tripod Compatible
1⁄4” - 20UNC screw
Specifications
| Frequency Unit | Fpm or Hz (Fps) |
| Frequency Range | 60.0 - 300,000 Fpm |
| 1.00 - 5000 Hz | |
| Frequency Accuracy | 0.01% (1 - 2000 Hz) |
| 0.02% (2000 - 5000 Hz) | |
| Fpm Resolution | 0.1 Fpm (60.0 - 999.9 Fpm) |
| 1 Fpm (1000 - 9999 Fpm) | |
| 10 Fpm (10,000 - 99,990 Fpm) | |
| 100 Fpm (100,000 - 300,000 Fpm) | |
| Hz Resolution | 0.01 Hz (1.00 - 99.99 Hz) |
| 0.1 Hz (100.0 - 999.9 Hz) | |
| 1 Hz (1000 - 5000 Hz) | |
| Flash Pulse Duration | 4°, 2°, 1°, ½°, ¼° (adjustable) |
| Phase Shift Step | 1°, 5°, 10°, 15° (adjustable) |
| Light Source | 50W High Intensity LED Lamp |
| Emission Output | 5000 lumen |
| Light Color | 6000 K (cool white) |
| Light Beam Angle | 60° |
| Display | OLED Monochrome Graphical Display |
| Battery | Panasonic Li-Ion 3350mAh |
| Battery Life | >16 hours (@ 100Hz, 1° flash duration) |
| Charging Port | Micro USB |
| Charging Time | 6 hours |
| Tripod Mount | 1/4 in. - 20UNC Screw |
| Dimensions (L x W x H) | 191 x 68 x 74 mm (7.5 x 2.7 x 2.9 in.) |
| Weight | 260 grams (9.1 oz.) |
| Operating Temperature | -10 °C to +40 °C (+15 °F to +105 °F) |
| Storage Temperature | -20 °C to +50 °C (-5 °F to +120 °F) |
User Guide - StroboTek PRO 01
